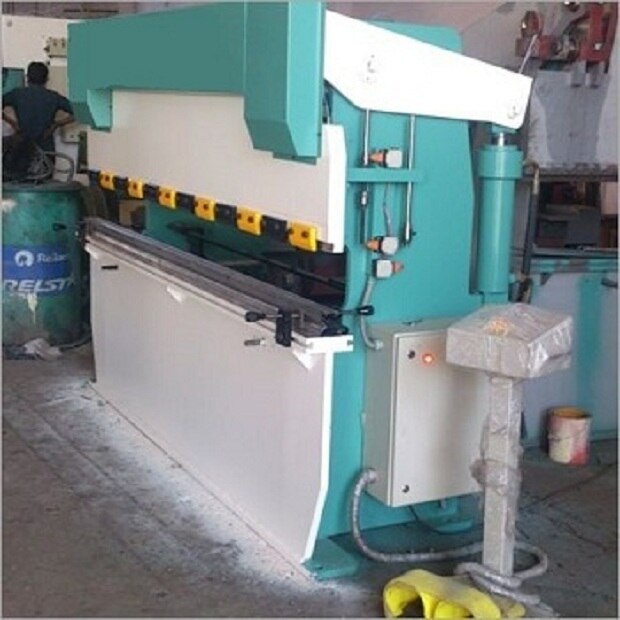

120 ton Double Cylinder Hydraulic Press Brake

Capacity 120 Ton Two Cylinder

Model no KHPB3000 x 8MM

Body structure M.S Fabricated

Bending Capacity/thickness 3000mm x 8mm (M.S)

Table Length in mm 3000mm

Table Width in mm 300mm

Clear pass in mm 3100mm

Ram Stroke in mm 200mm

Open Height in mm 300mm

Throat Depth in mm 300mm

Ram speed mm/sec, Approx 60mm/sec

Motor 20 HP 3 Phase 1440 RPM

V-Block 125mm

Top Tool One Set

Oil Tank Capacity 400 Lit

Oil Specification Hydraulic 68 No

NO Of Hydraulic Cylinders 2 No

Over All Dimension in mm 3200X1600X1800(LXWXH)

Over All Weight (Kg) 7 to 7.5Ton

Soft Die Meter 125 mm Each
